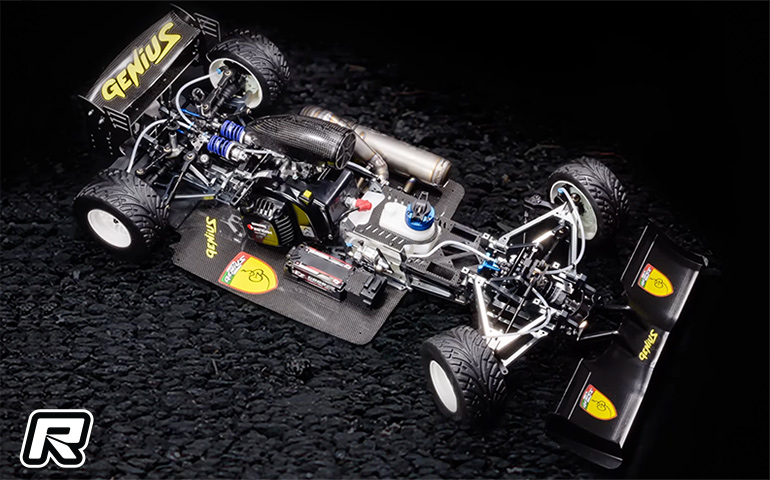

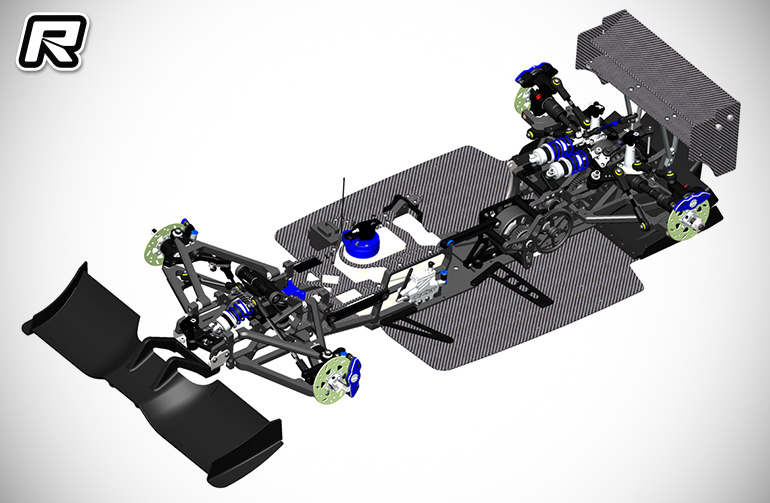

Genius FR2.24 1:5 Formula 1

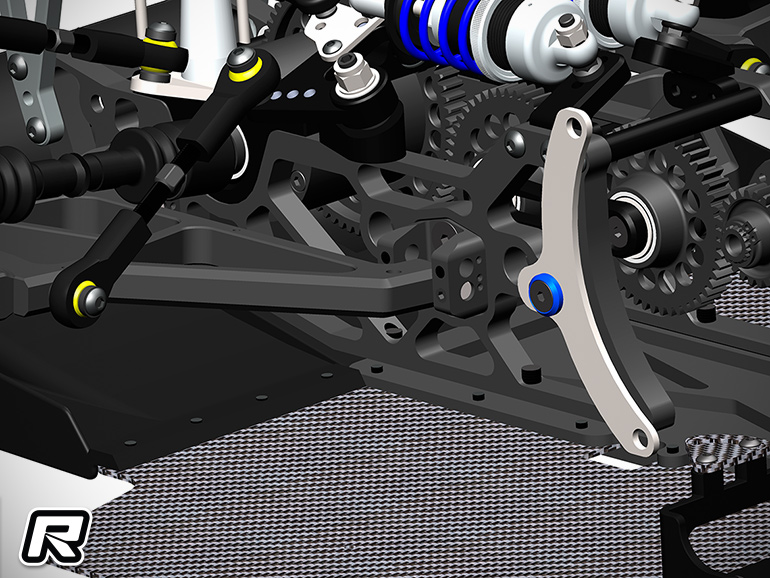

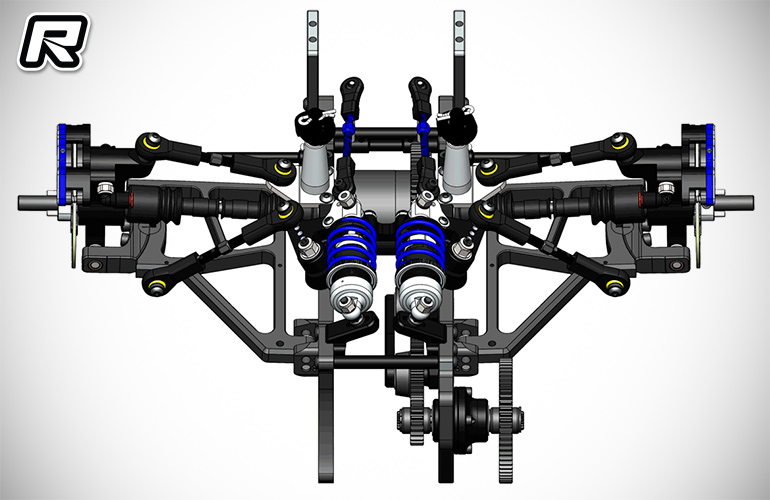

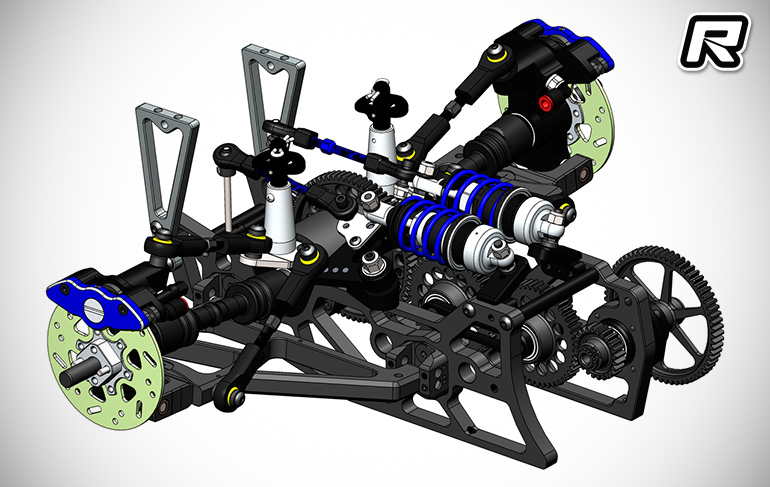

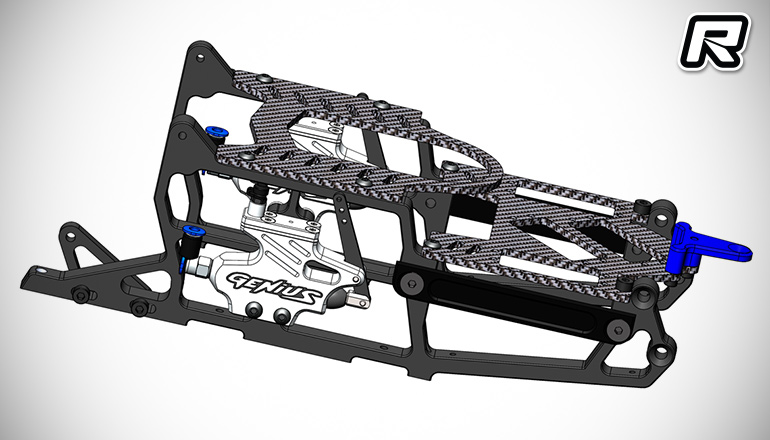

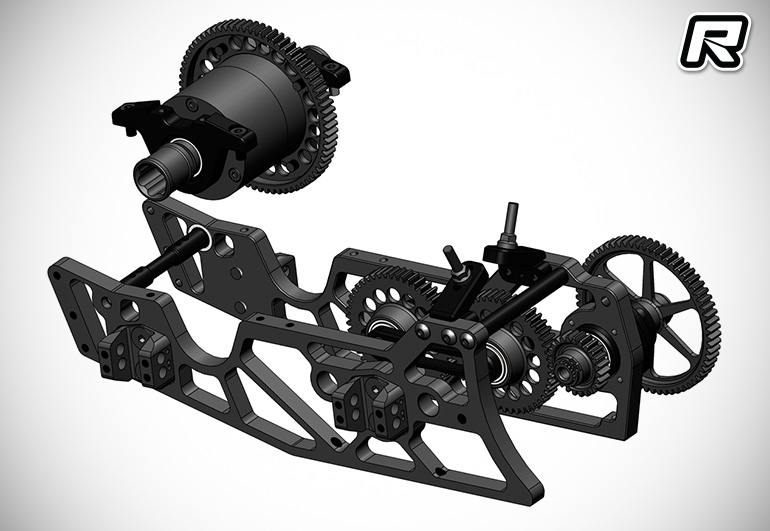

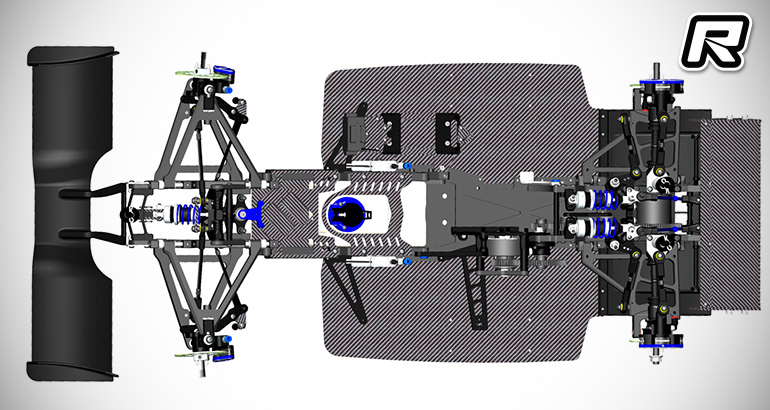

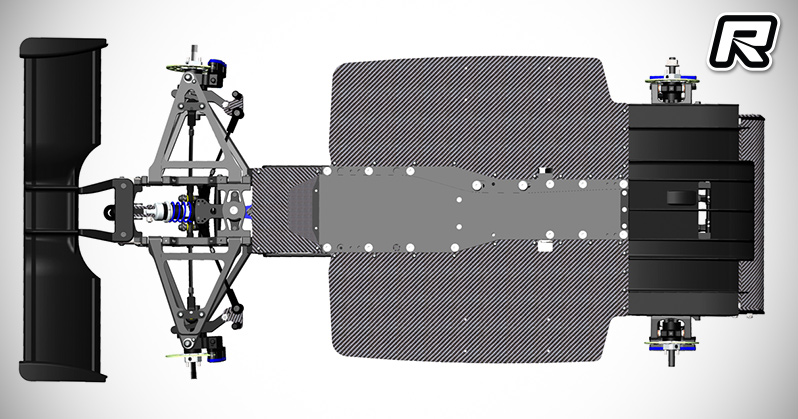

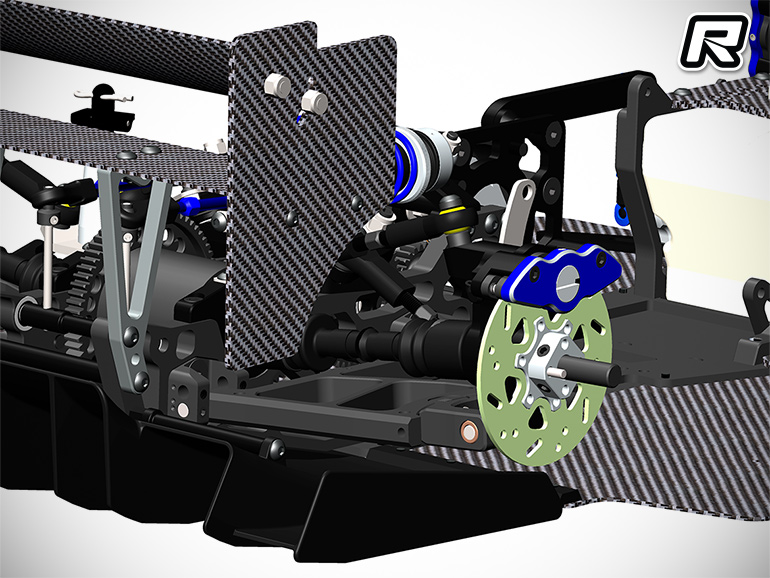

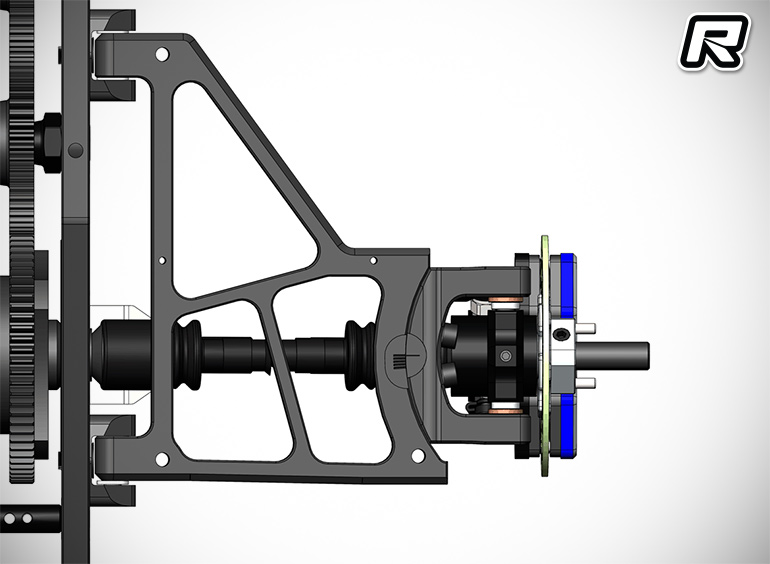

New from Italian large scale and 1:8 GT manufacturer Genius is their FR2.24 high performance 1:5 scale Formula 1 competition car. The latest car is a technological evolution of the previous FR2.EVO 2021 and features a new rear upright system for quick and easy wheelbase and weight balance adjustment. Using the included shims, both rear blocks can be moved rearward to adjust weight balance depending on track condition. The car also gets easy access to the differential for quick setup changes or maintenance. One of the design goals of the FR2.24 was to make the whole chassis have an extremely low centre of gravity, to make the car even easier to drive. The rear suspension has been designed to incorporate the push-rod system with the fully adjustable stabiliser bar and a highly smooth gear transmission. The new central chassis FR2.24 is characterised by the low profile of the radio plate and the brake master cylinders. The new front suspension geometry is a mono-shock with a 100% functional stabiliser bar. Genius have introduced 4 new positions of the lower rear arm allowing the roll centre to be varied to improve the handling and the car is equipped with new low profile shock absorbers at both the front and rear. For this system they have designed a line of progressive springs and a line of linear springs. The new battery support and receiving box have been completely redesigned: more compact, lighter and more functional. The receiver box is designed to house MYLAPS transponder and the power connection and they have introduced a new servo saver with new Akermann geometries which allow better cornering.
New features of FR2.24
New geometry of Ackermann

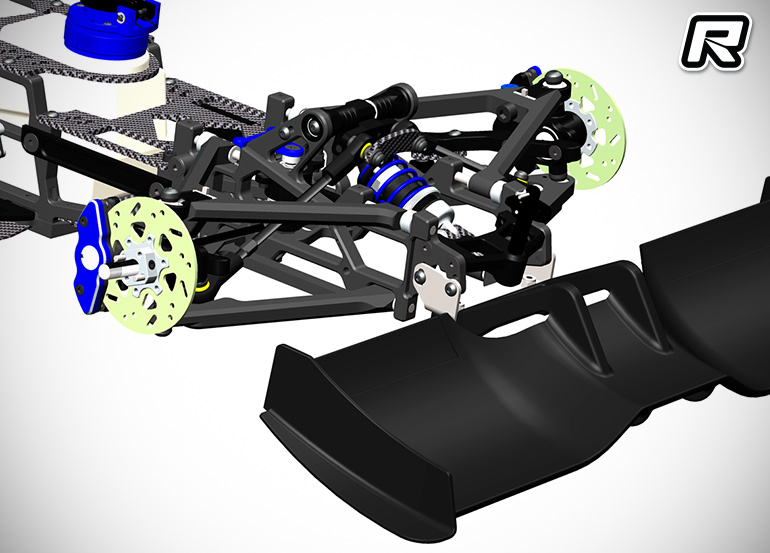

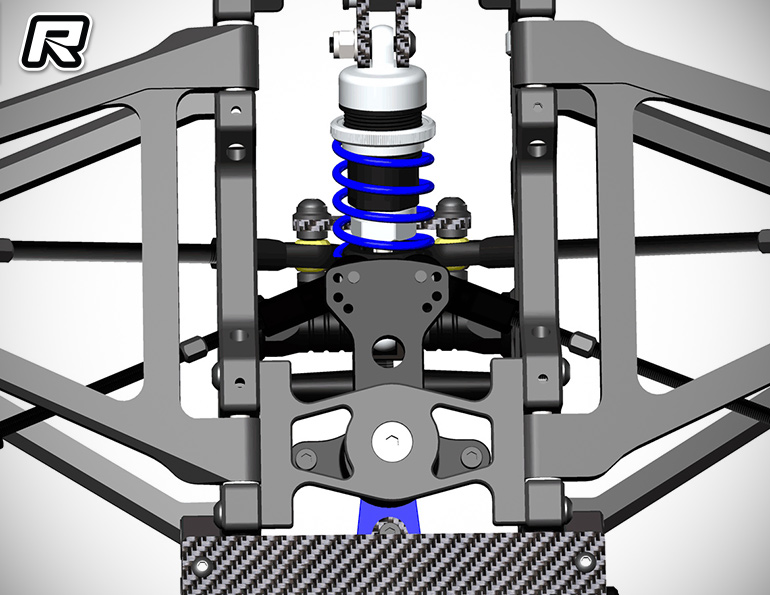

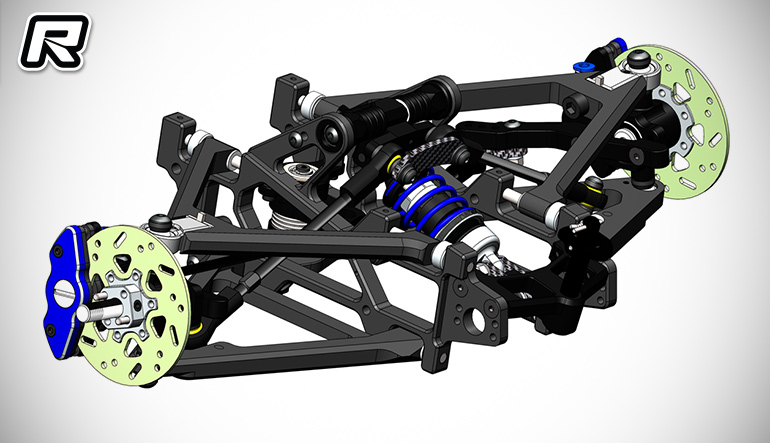

New front monoshock support on bearings
New rear schocks support

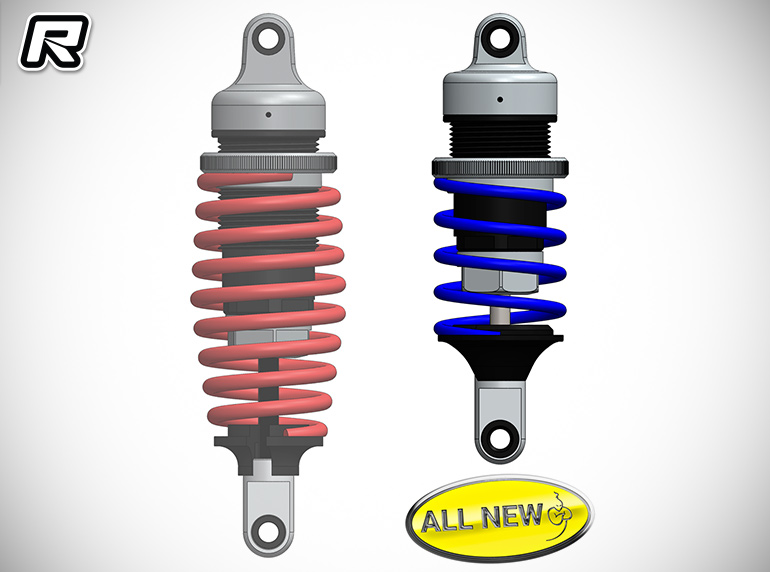

New short front and rear shock absorbers
Better geometries

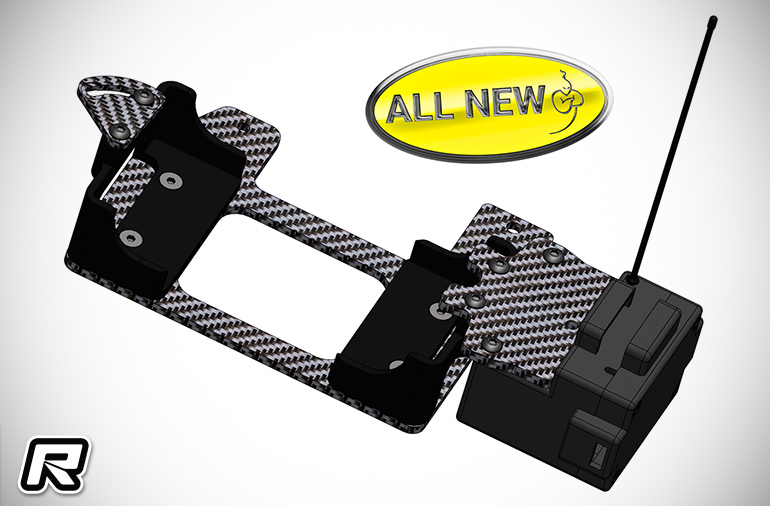

New receiving box with transponder housing and power supply
New battery support
Better weight balance
Easier racing set-up
Simplification of access points to facilitate assembly and disassembly

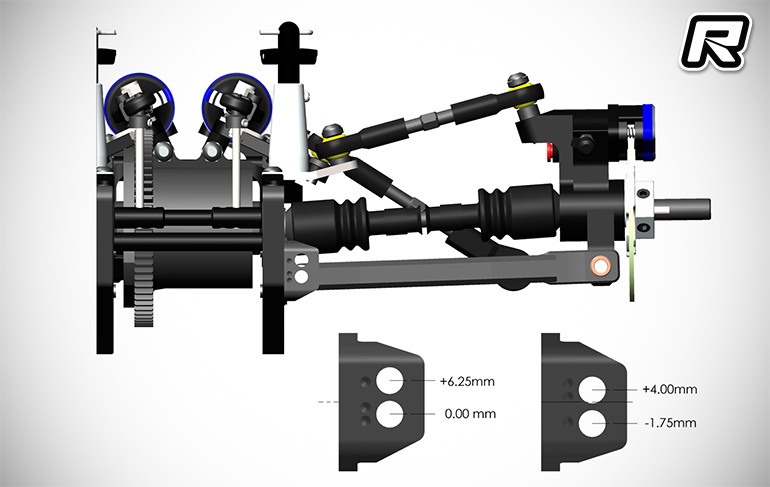

New rear arm supports with 4 adjustment steps
Source: Genius [genius-racing.com]
