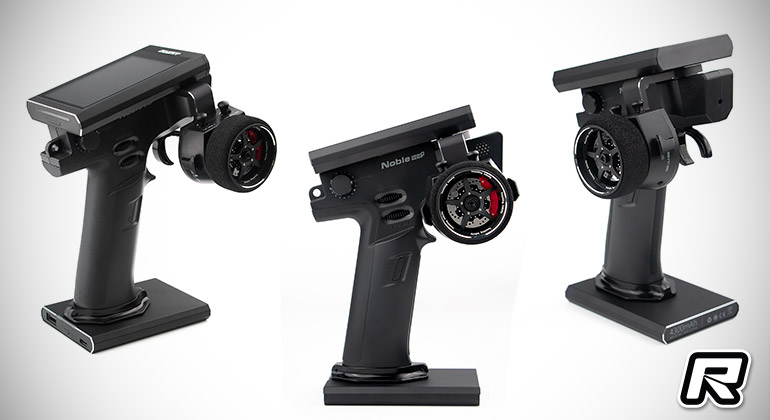

FlySky Noble NB4+ Transmitter

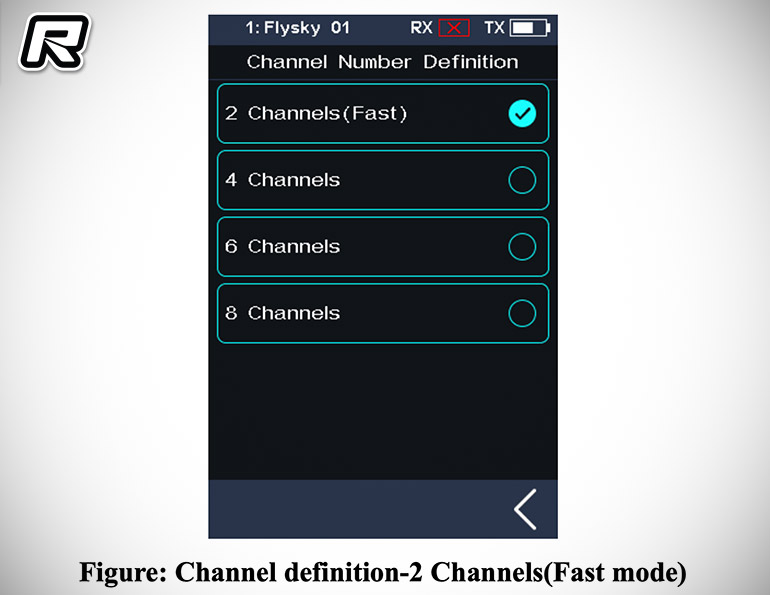

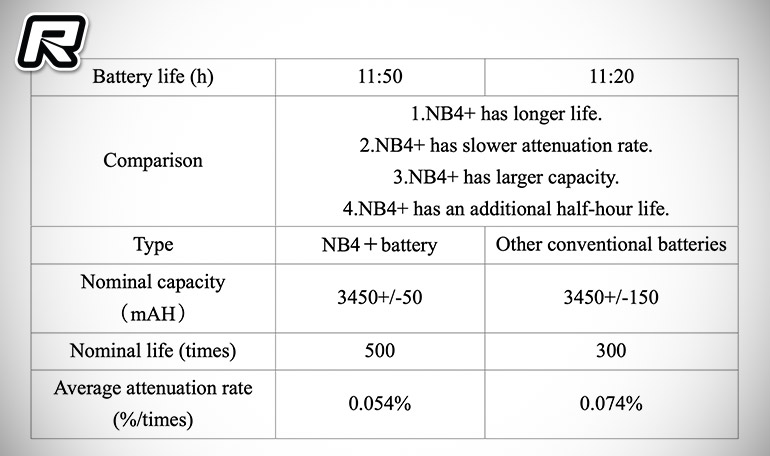

Having published preview images of the new Noble NB4+ Transmitter from FlySky last month, the much anticipated radio has today gone on official worldwide release with FlySky publishing its full specs. Highlights include the 2CH (Ultra-fast) mode, with latency below 3ms, ultra-low latency, allows users to precisely control responses in every critical moment and place themselves at the peak. An improved 3.5-inch 320*480 resolution IPS high-brightness outdoor display can be used under strong outdoor light, and its dazzling brightness cannot be conquered even by the limits of sunlight. The NB4+ controller features a “Removable” internal battery design, equipped with a standard large-capacity, high-quality 18650 battery. With a charging base, it can achieve over ten hours of ultra-long endurance, even in the face of RC marathons. The 3450mah battery means NB4+ has longer life of half an hour, has slower attenuation rate, has larger capacity.

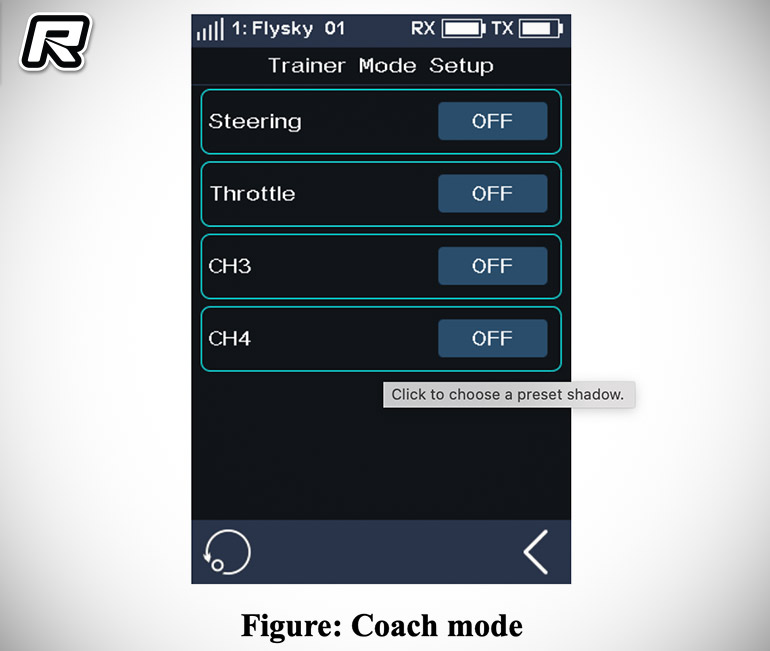

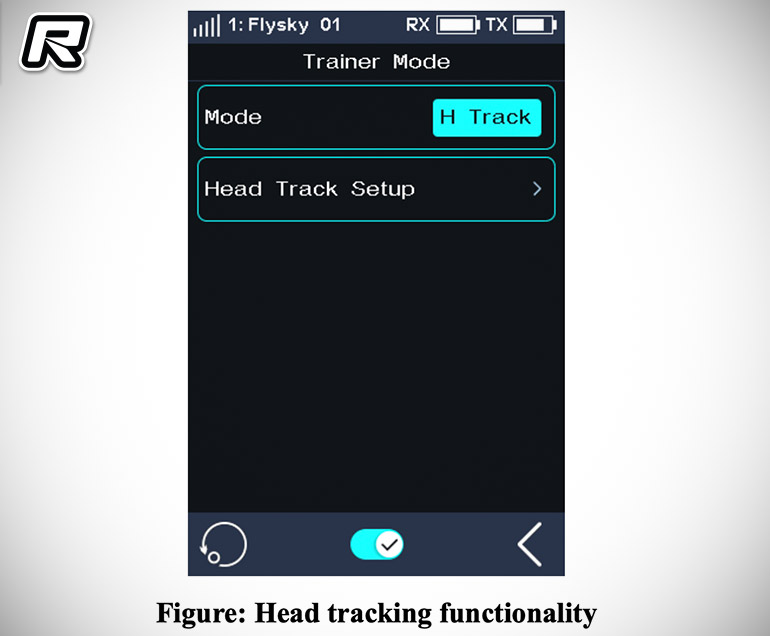

On the NB4+ the data interface is optimised by the USB Type-C interface, which is more stable in connection and more versatile. Not only does it support coach mode, where dual-ended Type-C data cables enable interactive teaching, but it also supports head tracking functionality. By connecting a head tracking device via the dedicated cable, users can experience the speed and excitement of real life. The coach mode helps users pass on skills effortlessly, while the head tracking functionality immerses users in the action.

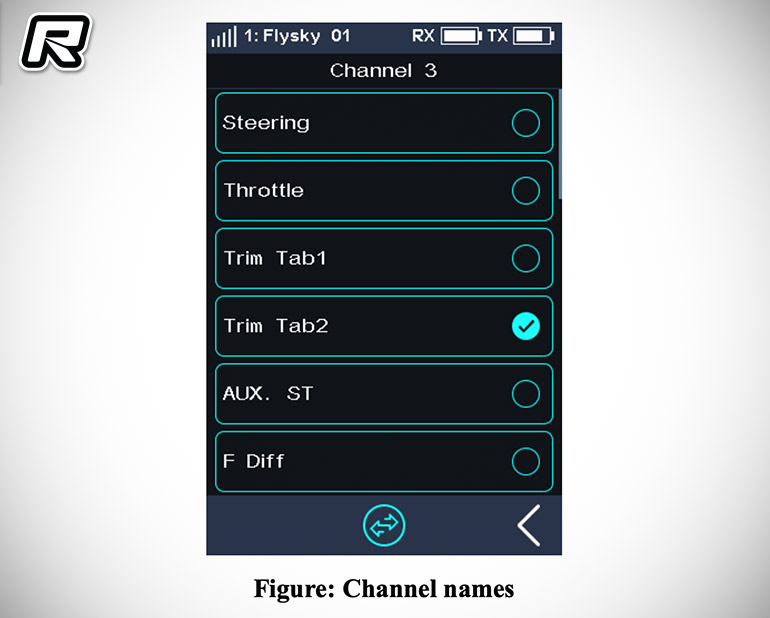

The function of customising channel names is added, which makes display more intuitive and allows users to easily understand the function of each channel in real-time.

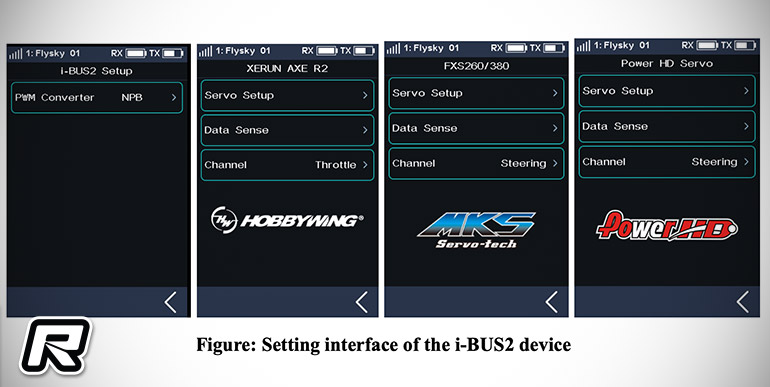

NB4+ supports the entire series of FlySky i-BUS2 devices, as well as Hobbywing (XeRun Axe R2 Combo) and Power HD (GTS-3, GTS-5, GTS-6, GTS-7). It supports remote parameter adjustment at the transmitter end, with multiple and comprehensive parameters adjustable to meet various usage demands.

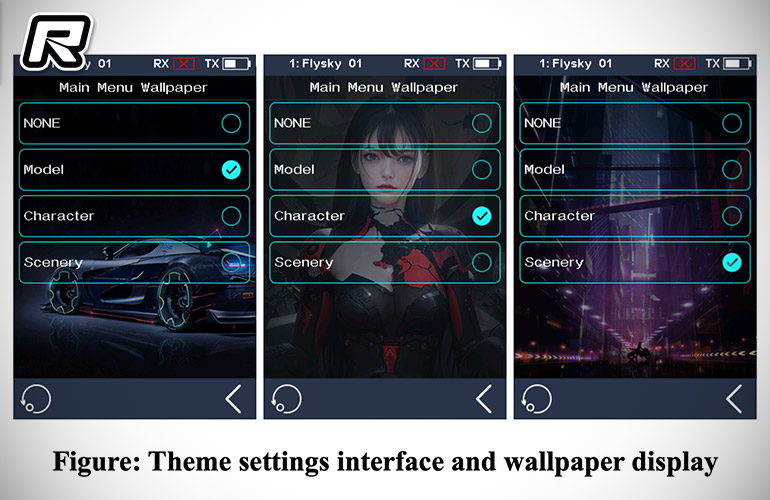

Finally the brand-new colourful UI design allows for customisable theme and wallpaper changes, enabling users to create their own unique style and bid farewell to the era of monotonous black-and-white screens.
Noble NB4+ Specification
Compatible Receiver: All AFHDS 3 protocol receivers
Compatible Models: Cars, boats
Number of Channels: 8
Wireless Frequency: 2.4GHz ISM
Transmitting Power: < 20 dBm
Wireless Standard: AFHDS 3
Low Voltage Alarm: < 3.65V
Data Output: USB Type-C
Charging Interface: USB Type-C
Antenna Type: Built-in single antenna
Display Screen: 3.5-inch 320480 full-dot matrix colour IPS touchscreen display
Channel Resolution: 4096
Input Power: 1S (4.2V) * 4300mAh lithium polymer battery + 3450mA 18650 battery
Remote Control Distance: > 300m (open ground without interference)
Online Update: Supported
Temperature Range: -10℃ to +60℃
Humidity Range: 20% to 95%
Appearance Color: Black
Dimensions: 131.41115.95*190.56mm
Weight: 520g
Safety Certification: CE, SRRC, FCC ID: 2A2UNNB4PLUS00, MIC, RCM
Source: Flysky [flysky-cn.com]
