Team Brood B7 Carbon Fibre Transmission Brace Kit

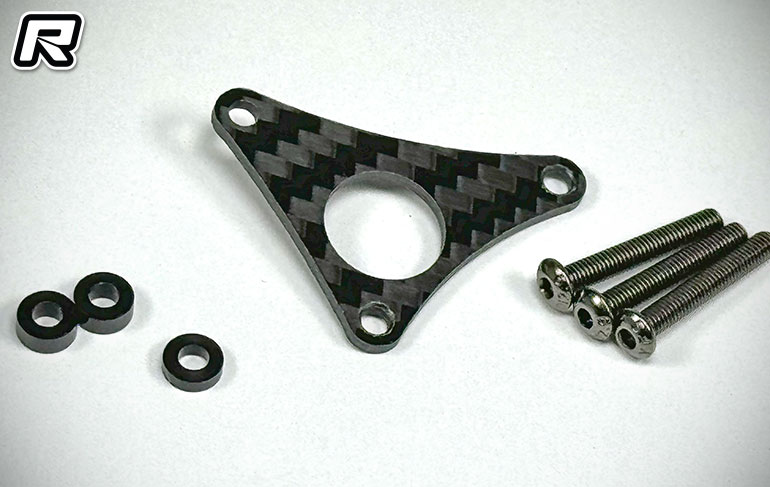

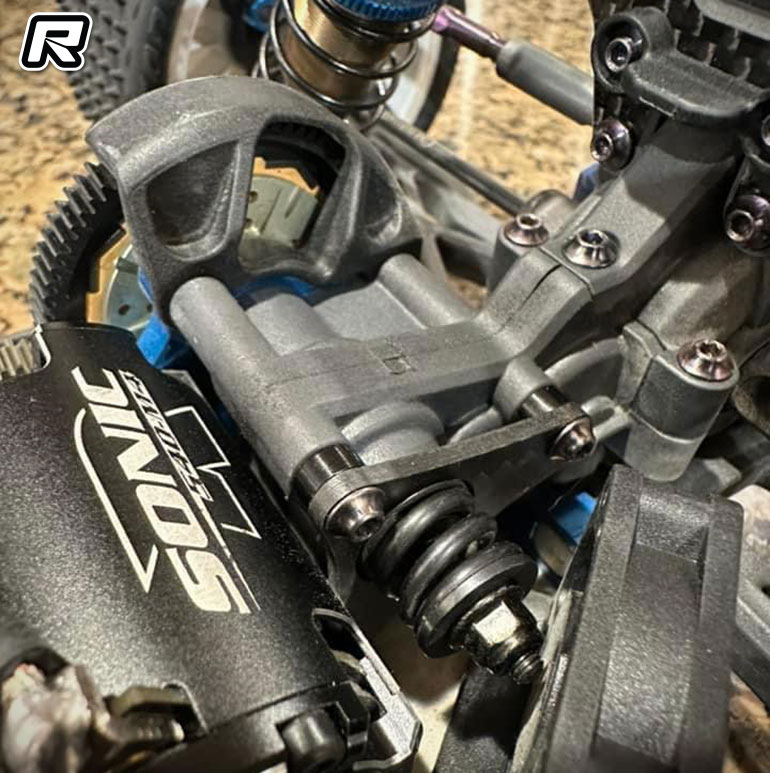

Team Brood Racing has announced this Carbon Fibre Transmission Brace Kit designed specifically for the Team Associated B7 2WD Buggy.  The new kit addresses the increased flex on the left side of the transmission case caused by the thickening of the motor plate from 3mm to 5mm on the right side, which has led to a higher incidence of idler gear failures compared to the B6 series of buggies.  The kit is a straightforward, bolt-on performance upgrade that requires no permanent modifications to your buggy.  Made from high-grade 1.5mm thick carbon fibre and precision CNC cut, the brace is engineered to match the stiffness of the right side of the transmission case, effectively eliminating the flex that causes idler gear failures.  The kit includes three of our 6061 ball stud washers, available in various colours, to ensure the brace sits on a flat, level surface. To accommodate the brace and ball stud washers, screw length must be increased from 16mm to 20mm.  Three M3x20mm button head screws are provided in the kit, but users can opt for their own screws, including titanium screws.

Source: Team Brood [teambrood.com]
