TestLogger Collector Mini
Finnish company TestLogger, owned by 2011 IFMAR Electric Buggy World Championship organiser Jussi Luopajärvi, has just announced the official launch of the TestLogger Collector, a product line on providing data logging equipment for RC cars racing. Inspired by the technology used in full-scale motorsports, TestLogger Collector offers a range of tools and equipment that deliver many of the advanced capabilities seen in professional full-scale racing. Whether you’re a club racer seeking an edge or a pro driver ready to push boundaries, the new TestLogger Collector Mini is tailored for those willing to put in the extra effort to uncover every bit of performance. Developed and tested with real racers, the Collector data logging system is a handy tool for collecting and analysing data and that way improving your track performance. Designed to fit any RC car from 1/12th scale pan cars to 1/5th size off-road cars, the modular system is easy to install and weighs less than 20 grams sensors included. The Collector Mini is like what is used in full-scale racing but considers the specific needs of RC car racing. System is designed to be future proof and maximise the compatibility with rule books. Collector Mini allows users to utilise the measured data to analyse the driving techniques or gain more understanding about car behaviour. As an example, optimise your final drive ratio, measure your air time in offroad or compare data from different drivers to understand where the time difference is coming.
COLLECTOR MINI SPECIFICATIONS
• Main unit weight with memory card 10 g
• Size: 26.1 x 24.6 x 22.4 mm
• Data transfer and configuration via USB port
• Supports Windows and Mac
• Adjustable logging rate for each channel (500Hz, 200Hz, 100Hz, 50Hz, 10Hz, 1Hz)

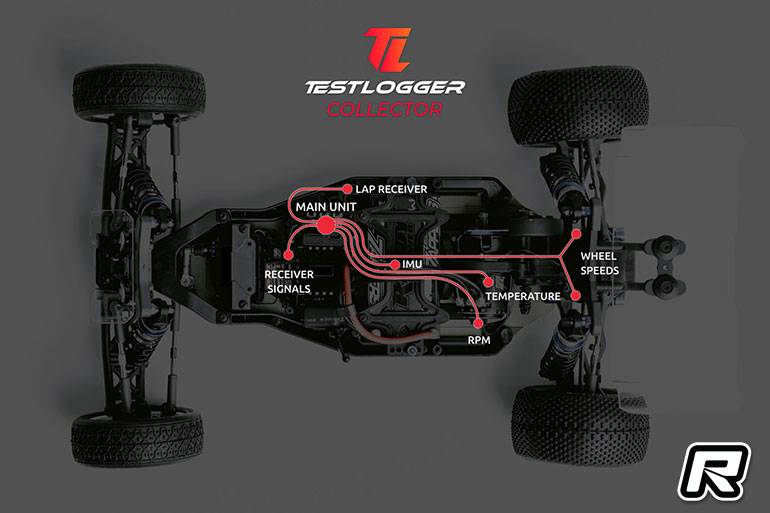

• 2 receiver channel inputs (steering, throttle/brake)
• Lap trigger input. One track side beacon gives lap times and split times need a minimum of two beacons.
• 1 Analog input (e.g. temperature)
• 1 RPM input (motor sensor breakout or RPM sensor)
• 2 wheel speed inputs
• Bus connectivity (6-axis IMU)
Source: Testlogger [testlogger.com]
