Infinity IF18-3 Alu Upper Knuckle Set

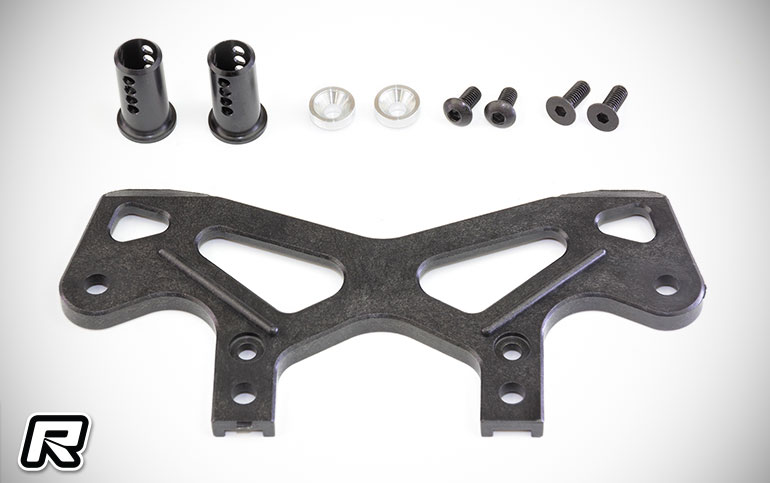

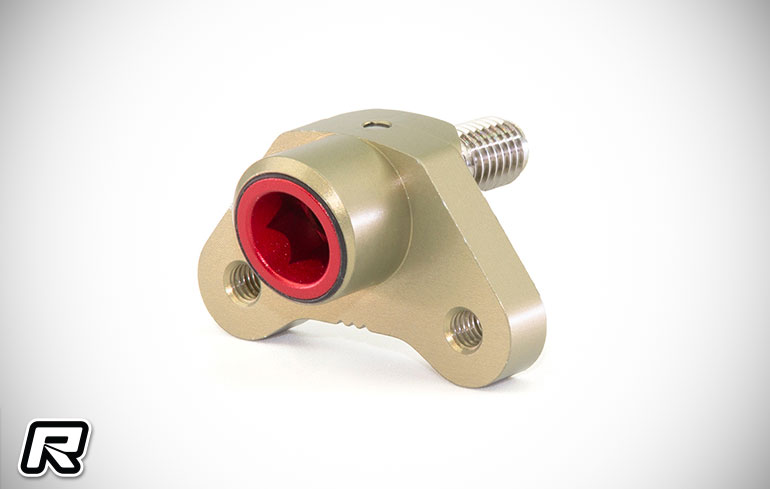

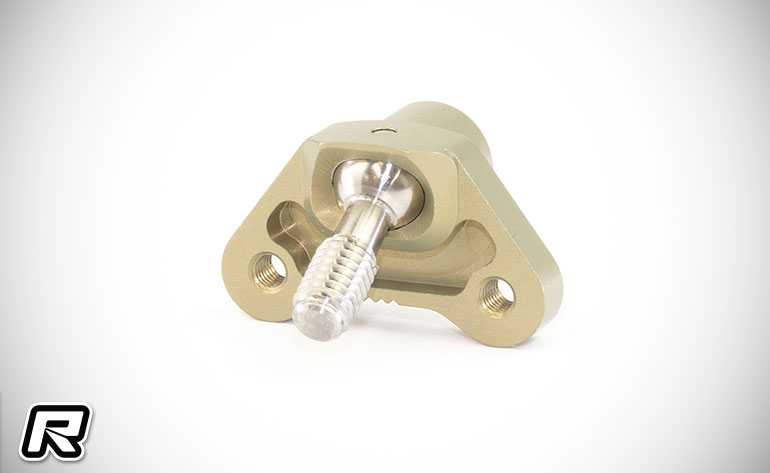

New from Infinity for its World Championship winning IF18-3 1:8 Onroad kit is this Aluminium Upper Knuckle Set, with the Japanese manufacturer also introducing a new Hard Plastic Front Body Mount Set.  With the new Upper Knuckle Set not only has rigidity been increased by using A7075, but the pivot height has been raised by 2mm compared to the standard part R300B/300H, providing more responsive steering and changing the camber change rate.  To ensure clearance inside the wheel, the ball has been downsized from 8.5 to 8.0mm and the screw cap from 10 to 9mm and tilted by 10 degrees.  A specially prepared 8mm titanium ball is included to ensure proper steering angle.  The main body is hard anodised.  The Hard Plastic Front Body Mount Set revives the plastic front body mounting plate that was a standard item on the first Infinity 1:8 chassis and the IF18.  It subtly reduces the powerful front downforce from the body for smoother steering characteristics.

Source: Creation Model [creationmodel.net]
