December 18, 2024

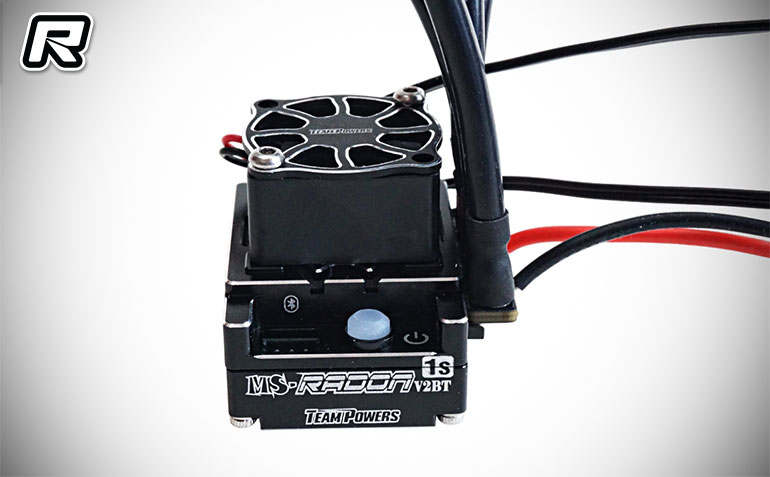

Team Powers Mini Spec Radon V2BT 1S ESC

Team Powers has announced the release of its new Mini Spec Radon V2BT 1S Speed Controller.  With the same functions as Radon Pro V5BT 1S it is 25% smaller. Its 32-bit MCU for ultra-smooth, faster response with precise throttle and braking control and it features Bluetooth support for advanced programming and firmware updates via Mobile Apps (iOS & Android).  With reverse polarity protection
it has a built-in one-touch On/Off switch and gets new 20mm fan with CNC aluminium fan guard.  Includes 13AWG high-density copper soft wire.

Specifications
Controls: Forward/Brake/Reverse
Input Voltage: 1S lipo (3.7V)
BEC: 6V/7.4V selection with max ~8A ampere drawn
Motor Limit: 6.5T or higher (motor timing at 0 degree)
Max ampere drawn: ~105A per phase
Size: ~31.5x25x15.5mm
Weight: ~22g (without wiring and fan)

Source: Team Powers [team-powers.com]
