March 3, 2025

PowerStar HV Digital Large Scale Servo

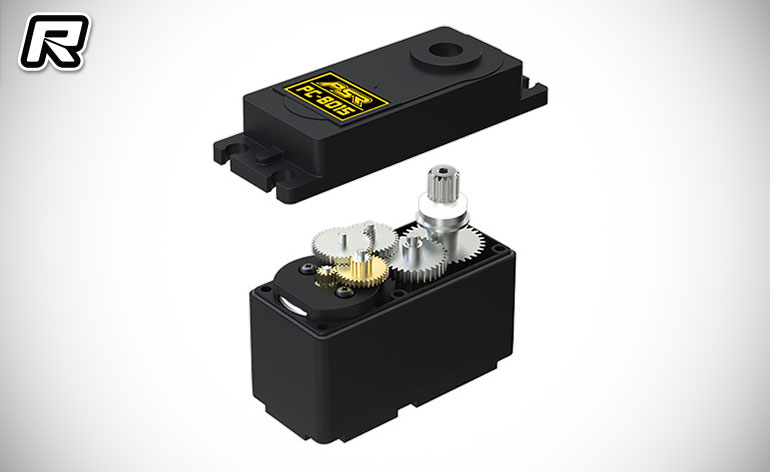

Vapon owned brand PowerStar, who also own VP Pro and Team Saxo, has released a new servo intended for Large Scale car use.  Engineered to utilise the latest technologies it offers high precision offering 1:5 enthusiasts huge torque of 80kg @ 8.4V and excellent speed at 0.15sec @8.4V to power through the toughest terrains.  The steel gears keep the servo working smooth and reduce any deformity or wear. For easy installation, a 15T spline double horn and a single horn are included.

Specifications
Torque(6.0V): 60 kg.cm
Torque(7.4V): 70 kg.cm
Torque(8.4V): 80 kg.cm
Speed: 0.18sec(6.0V)|0.16sec(7.4V)|0.15sec(8.4V)
Operating Voltage:6.0V ~ 8.4V
Weight: 148g (not including accessory)
Bearing Type:Metal Bearing
Motor Type:DC
Gear Type:Stainless steel
Operating Temperature range:-20℃~60℃
Working frequency:1500μs / 333Hz
Size:45x30x48 mm
Wire length:240mm

Source: PowerStar [powerstar-racing.com]
