Power HD 1:8 Buggy and GT servos
Power HD has released two new HV brushless servos, the S35-V2 and T60-BHV, which are designed for competition spec 1:8 Buggy and 1:8 GT use. The S35-V2 is an extended model of S35 servo and offers ultra-responsive speed and high torque output. The bottom case features a widened heatsink design, improving heat dissipation to handle hot summer condition and ensuring the servo’s operation. The T60-BHV is an extended model of T50-BHV servo and caters to diverse user preferences in 1:8 Truggy setups, maintaining robust torque at high-intensity track. It gets upgraded hardware structure on PCB and brushless motor, which enhances its durability in high-temperature conditions.
Key Features
Full CNC Metal Casing: Features a finely designed heat-sink bottom case for improved heat dissipation.

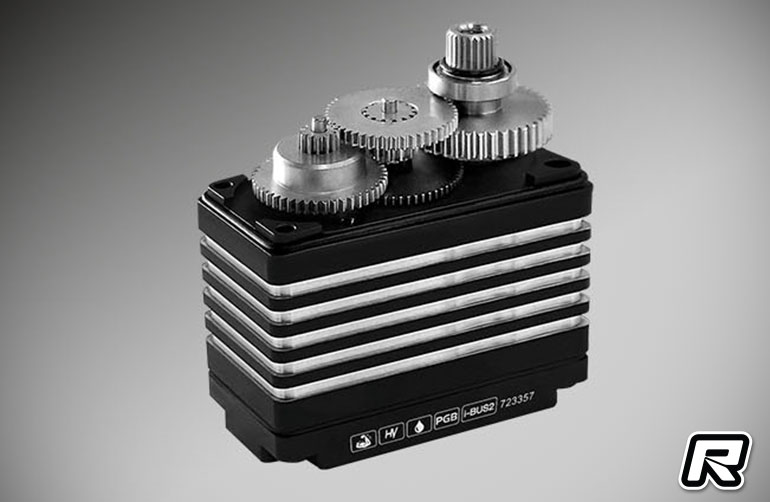

7075 + 303 Steel Gears: Ensures durability and longevity. Japanese NOBLE Potentiometer: Provides precise and reliable feedback.
American imported ST32-bit MCU control chip: Ensures superior servo performance.
HV Brushless Motor: Compatible with 6.0-8.4V input, delivering consistent performance.
Supports multiple receiver modes: FlySky：NOR/SR/SFR; FUTABA：NOR/SR/UR; SANWA：NOR/SHR/SSR/SUR/SXR

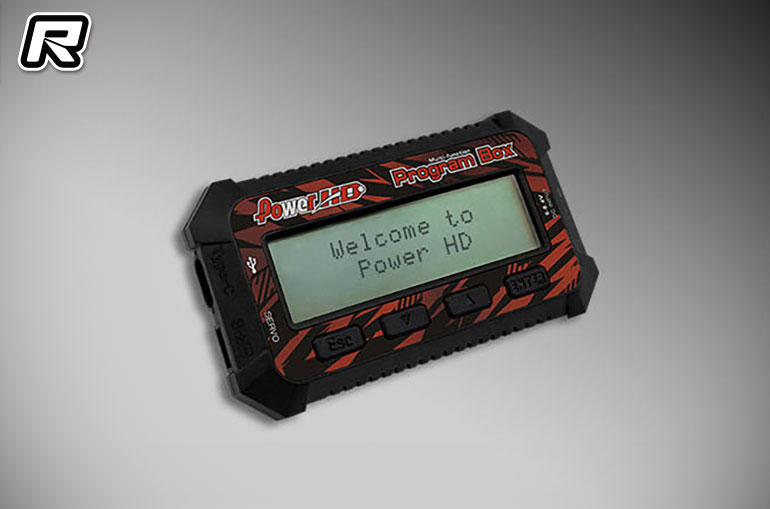

Programming Support: Compatible with Power HD’s program box PG-CB63 for servo settings.
Support i-BUS2 Protocol: Enabling advanced servo parameter adjustments directly from FlySky transmitter (Noble NB4+ and NB4+ Pro).
Warranty: two-year factory warranty.

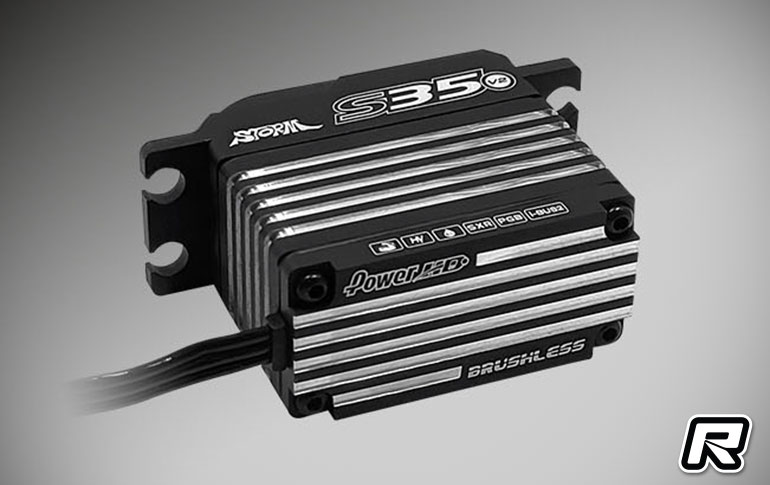

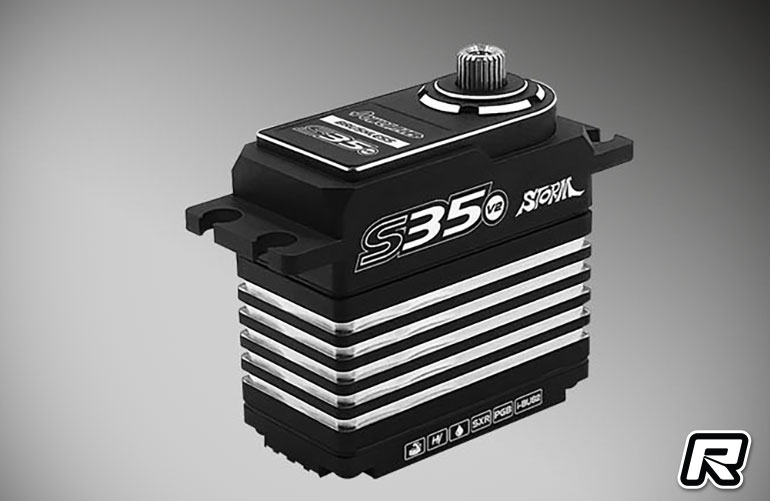

S35-V2 Specs
Torque(6.0V): 29.0 kg-cm (402.7 oz/in)
Torque(7.4V): 35.0 kg-cm (486.1 oz/in)
Torque(8.4V): 45.0 kg-cm (624.9 oz/in)
Speed: 0.115 sec (6.0V) │ 0.098 sec (7.4V) │
Speed: 0.085 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 79.0 g (2.79 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature: -10℃~60℃
Working frequency：1520μs / 50 ~1500hz
Size：40.5 x 20.0 x 38.4 mm ( 1.59 x 0.79 x 1.51 in)
Compatible with ibus2 and program box

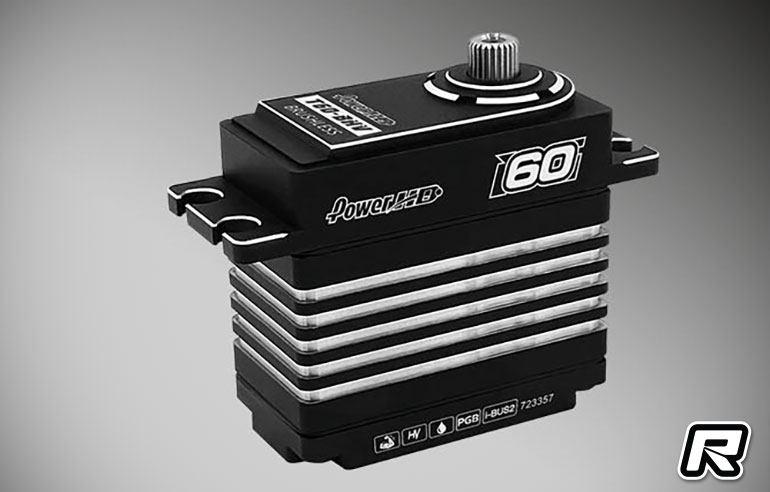

T60-BHV Specs
Torque(6.0V): 45.0 kg-cm / (624.9 oz/in)
Torque(7.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(8.4V): 60.0 kg-cm / (833.2 oz/in)
Speed: 0.098 sec (6.0V) │ 0.089 sec (7.4V)
Speed: 0.080 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 83 g (2.93 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Steel
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 50 ~1500hz
Size：40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Compatible with ibus2 and program box
Source: PowerHD [chd.hk]
