April 7, 2025

RUDDOG Racing expands LiHV battery range

RUDDOG Racing has expanded its high-performance LiHV battery line with the launch of two new competition-grade models, the 7700mAh 150C/75C 7.6V LCG Stick Pack LiPo-HV Battery (RP-0798) and the 7000mAh 150C/75C 7.6V 113mm Mid Short Stick Pack LiPo-HV Battery (RP-0799).  Both batteries are designed to meet the highest demands of competitive racing, offering cutting-edge cell technology, high capacity, and consistent power delivery.  The RP-0798 features a low-profile LCG stick pack design with a 22.5 mm height and 7700mAh capacity – perfect for applications where a lower centre of gravity is key to performance.  The RP-0799, on the other hand, was specifically developed for 1/8-scale electric buggies such as the Team Associated RC8B4 and the Xray XB8E 2025.  With its 113 mm length and 25 mm height, it fits perfectly into the dedicated battery tray of these platforms and offers significantly more runtime than standard shorty packs.  Both batteries utilize the latest spec silicon graphene lithium-polymer cells with a continuous discharge rate of 75C and peak rate of 150C.  The improved internal resistance ensures consistent, powerful performance on the track and both batteries are EFRA and BRCA homologated, making them fully legal for national and international competitions.

Features
• High-performance 75C/150C cells for exceptional power delivery
• Latest silicon graphene LiPo cell technology for improved internal resistance
• Low resistance for maximum output and efficiency
• High capacity for extended runtimes
• EFRA and BRCA homologated from Spring 2025

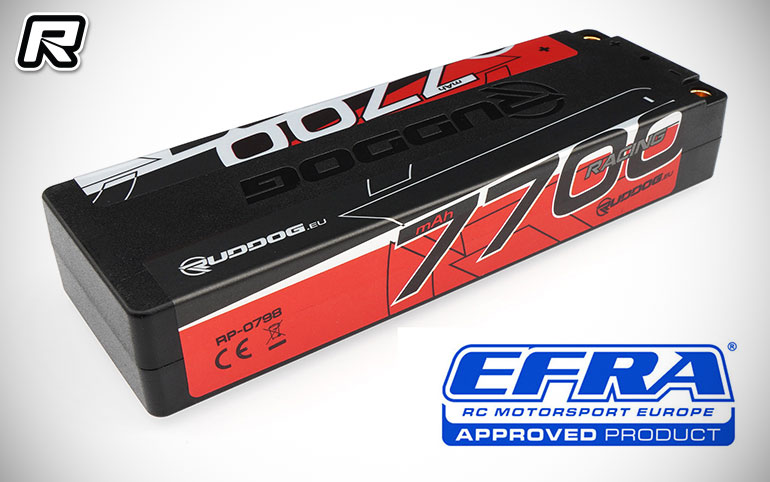

• RP-0798: LCG design with only 22.5 mm height
• RP-0799: 113 mm length tailored for 1/8 buggies (e.g. RC8B4, XB8E)

Technical Specifications – RP-0798
• Capacity: 7700mAh
• Voltage: 7.6V | 2S | LiHV
• Discharge Rate: 75C/150C
• Cell Type: Silicon Graphene Lithium-Polymer
• Dimensions: 139 x 46.5 x 22.5 mm
• Weight: 293 g
• Connector: 5 mm | Balancer: 2 mm

Technical Specifications – RP-0799
• Capacity: 7000mAh
• Voltage: 7.6V | 2S | LiHV
• Discharge Rate: 75C/150C
• Cell Type: Silicon Graphene Lithium-Polymer
• Dimensions: 113 x 46.5 x 25.0 mm
• Weight: 250 g
• Connector: 5 mm | Balancer: 2 mm

Source: Ruddog [ruddog.eu]
