Red RC » Controllers

December 10, 2016

Castle Creations Mamba X sensored speed controller

Coming soon from Castle Creations is the Mamba X sensored brushless speed controller for 1/10th scale applications. Capable of handling 2S to 6S LiPo battery packs the waterproof controller features an adjustable standard and high-voltage BEC system, it is telemetry and data logging capable, and it works with Castle Creations’s 1406, 1410 and 1415 sensored motors as well as other sensored brushless motors of comparable specifications. An addition cooling fan keeps the speedo, that is housed in an aluminium case, cool in demanding applications.

View the features, specifications and more images here

December 9, 2016

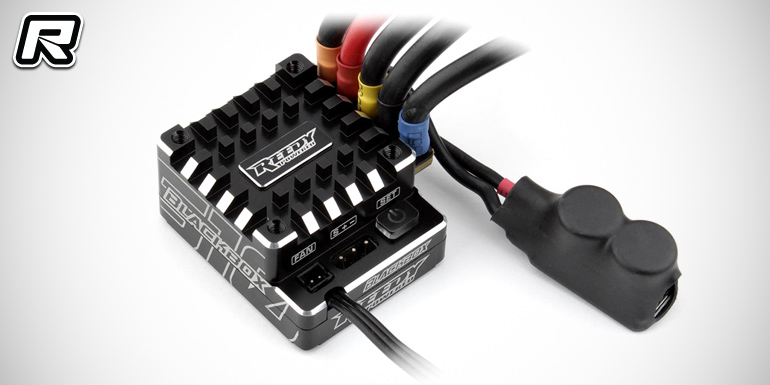

Reedy Blackbox 510R competition brushless ESC

Reedy have introduced their new Blackbox 510R brushless speed controller. Housed in a black anodised aluminium case with integrated heatsink the ESC features an adjustable standard or high-voltage BEC system, RPM and ESC temp data logging, an on-board power button as well as fully adjustable brake, throttle, power and safety functions. With the help of the PROgrammer2 box the controller’s software functions can be fully exploded and as an addition the box operates also as a battery monitor and USB firmware update device. The 510R ESC includes two modes that can be modified and saved independently from one another. The standard mode offers a wide variety of tuning options while the expert mode takes it one step further and opens additional options for more experienced racers and/or racing classes that can take advantage of these more complex settings.

View the specifications and another image here

December 1, 2016

Muchmore Fleta M8.1 Black brushless speed controller

Muchmore have introduced the Fleta M8.1 Black 180A brushless speed controller for 1/8th scale applications. The 6S LiPo-compatible ESC measures a compact 44.8x45x23.2mm and it is housed in a machined and black anodised aluminium case with Flow-Max design for maximised cooling. The triple power capacitor ensure high power output and a linear throttle feeling while the included ultra high RPM fan is protected by an aluminium guard. The controller comes with the new M8 V2.0 firmware that is adjustable using the optional Fleta Super High Response programming card. The speedo is usable with sensored and sensorless 2 to 6-pole motors and it will hit stores soon.

content

November 28, 2016

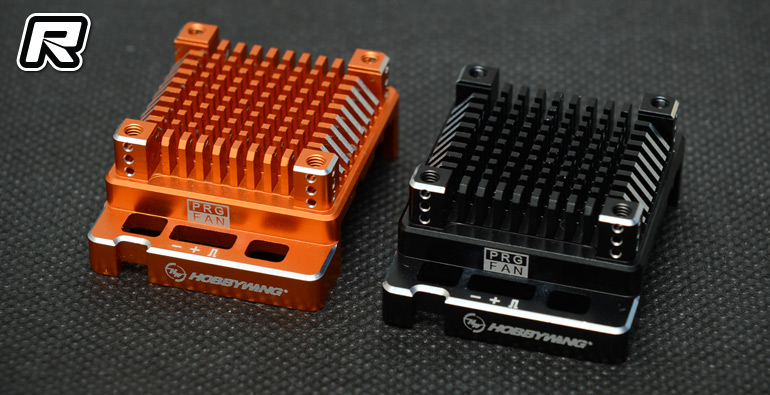

Hobbywing XeRun XR10 optional top case

New from Hobbywing for their XeRun XR10 Pro ESC comes this optional top case. A direct replacement for the standard aluminium top case, this new version has a larger heatsink footprint, and so accepts a larger diameter fan than the standard version, as well as featuring taller fins for more surface area to improve cooling. In testing with their team drivers this optional item showed a significant drop in operating temperatures for the ESC which makes it ideal for tracks where the speedo would normally run hotter. Available in anodised black or orange.

View a side by side case comparison here

November 21, 2016

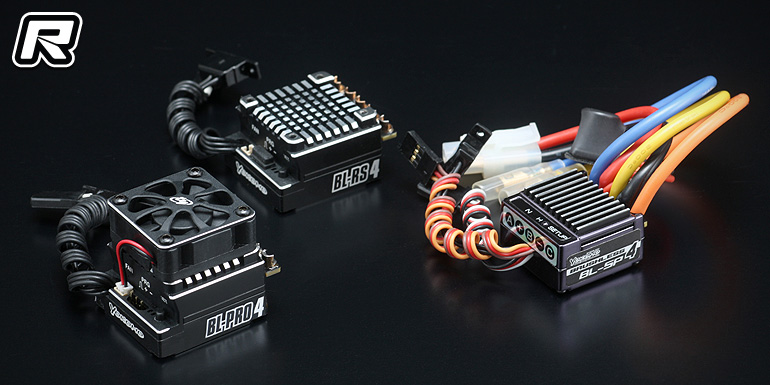

Yokomo BL4 series brushless speed controllers

Yokomo have updated their line of high-performance brushless speed controllers and now introduce the BL4 series. The range includes the BL-Pro4, BL-RS4 and BL-SP4 with the BL-Pro4 being a top-of-the-foodchain ESC with an all-aluminium case, 1-cell LiPo booster, a new cooling fan and an aluminium cooling fan guard. A new firmware allows for better control over the boost, turbo delay and slope functions as well as the brake frequency. On top of this the controller sports all-black wiring for that cool factory look.

Continue reading here here

November 8, 2016

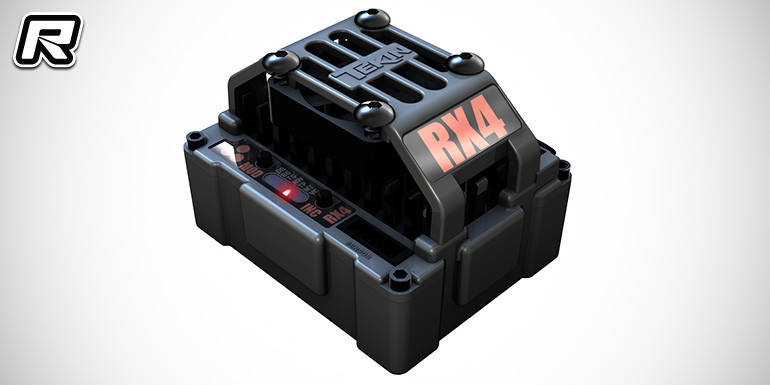

Tekin RX4 brushless rock racing & rock crawler ESC

Coming from Tekin is the new RX4 rock racing and rock crawling brushless electronic speed controller. The waterproof speedo offers features such as a high-voltage BEC, widely adjustable brake settings, data logging and it can also drive brushed motors. The HotWire PC interface allows for advanced programming and updating and gold-plated solder posts make for easy wire replacing. The controller measures 40.6×50.8×35.5mm, it weighs in at 75.5g and it is usable with 2S to 4S LiPo batteries.

View the specifications and more images here

November 4, 2016

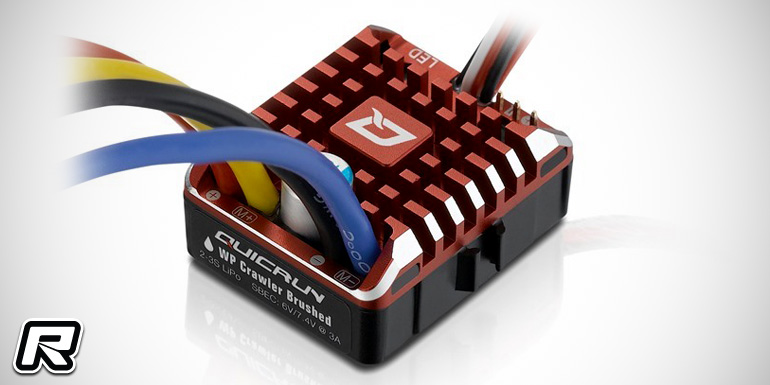

Hobbywing QuicRun WP Crawler Brushed ESC

Hobbywing have introduced the QuicRun WP Crawler Brushed electronic speed controller for 1/10th and 1/8th scale crawlers. The compact unit features adjustable PWM frequency and advanced DEO/freewheeling technology for a very linear throttle and driving feel. Fine-tuneable settings such as drag brake and brake force allow for improved vehicle control with a total of 15 different parameters being user-adjustable. On top of this the controller is waterproof for go-everywhere capabilities and it sports a powerful 6V/7.4V BEC system. It comes pre-wired with an XT60 input connector and is adjustable using the incorporated set button or the included LED programming box.

View the features and another image here

October 28, 2016

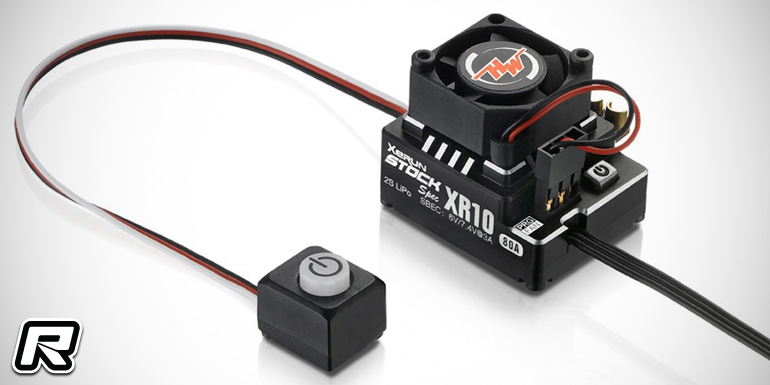

Hobbywing XeRun XR10 Stock Spec – Full details

Following first teaser images and brief information, Hobbywing have now officially revealed the XeRun XR10 Stock Spec brushless speed controller. Housed in a black anodised aluminium case with incorporated heatsink the purpose-designed stock class controller is of smaller dimensions than the popular XR10 Pro 160A controller. With a footprint of 31.5×25.6mm and a weight of 28g without wires the speedo makes it easier to place it in crowded environments. Despite the smaller size the controller boasts with a lot of features such as a high-voltage 7.4V BEC system, an 80A rating and it sports a patent pending dual switch design with the internal electronic switch is backed by an additional one that attaches to the rear part of the case, making for easier handling when the car’s body is already installed or when the internal switch is hard to reach. On the software side of things the XR10 Stock Spec is packed with a special firmware that includes pre-configured stock racing profiles for on-road and off-road, it features adjustable throttle and brake PWM frequency settings and the ESC is adjustable using Hobbywing’s WiFi Express module and a mobile device and also using Hobbywing’s LCD programming box.

View the specifications and more images here
